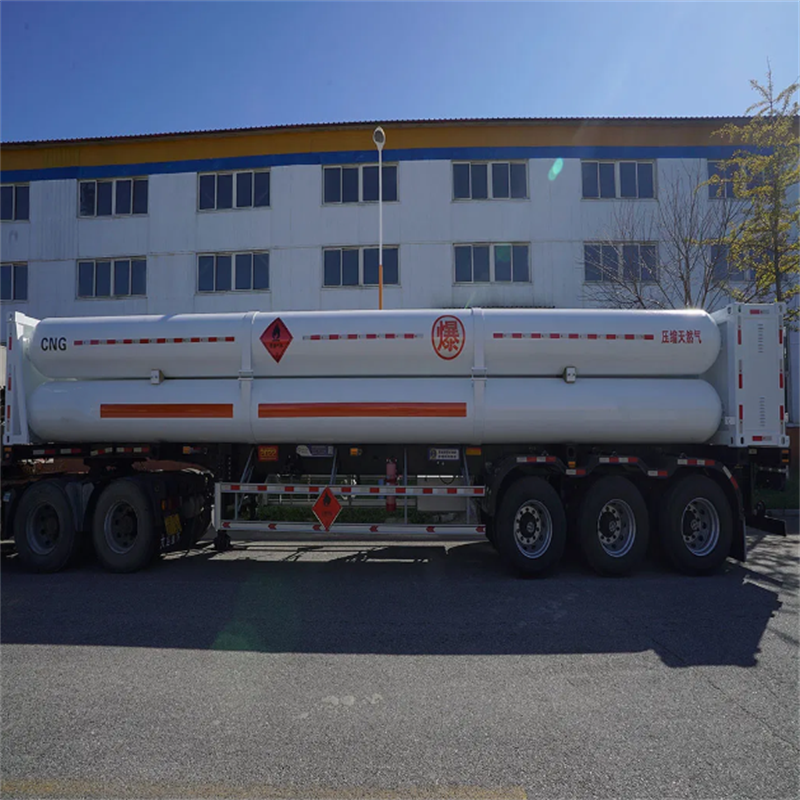

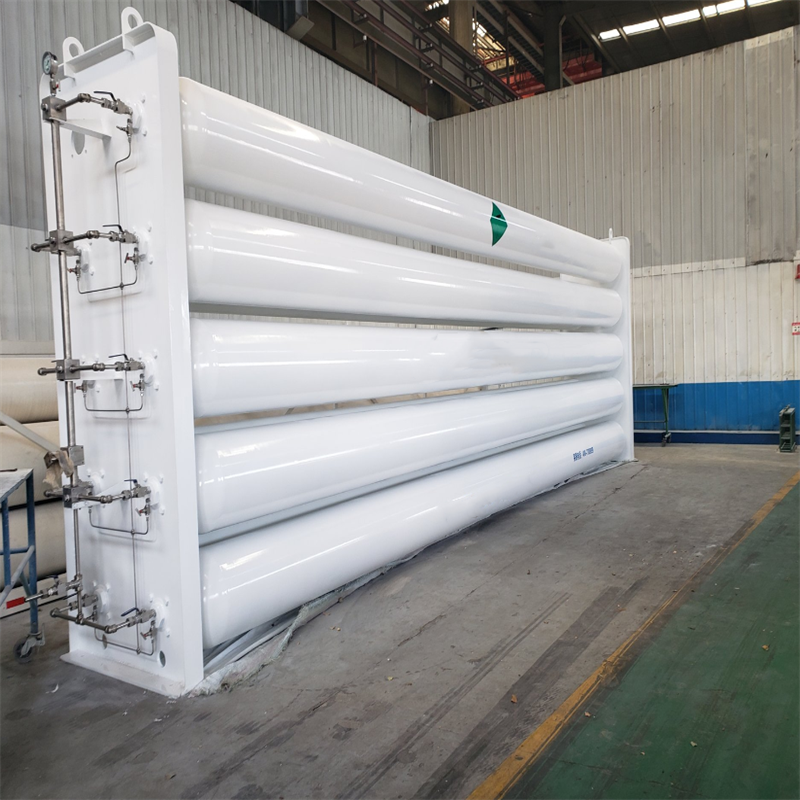

12-tube CNG cascade cylinder skid-mounted container, 25MPa hydrogen storage cylinder

12-tube CNG cascade cylinder skid-mounted container, 25MPa hydrogen storage cylinder

Contact Us

Product Parameters

8ed2660d800299fe733f7e8f5ef31d77

12-tube bundle container ( 20ft )
Tube
Bundle
Container
ItemDataCylinderItemData
TypeGSJ12-1050-CNG-25Working pressure25MPa
Container weight19632KgWorking temperature-50~65
Filling weight2835KgMain material4130X
Rated weight22467Kgcylinder QTY12
Filling mediumCNGTotal volume12.6 M3
Gas tightness test pressure25MPaPressure for water pressure test37.5MPa
Pipeline water pressure test pressure37.5MPaDimension559x17.4x5400
Filling volume3969 Nm3Design temperature65
Dimension6058x2438x2000Medium propertyExplosive
TransportingHighway combined transport

Design service lifeFifteen years

Bursting discsBurst pressure37.5MPa

Bursting disc device discharge aperture≥20


28ace7df8884a90da329f413e0ad5a9c

d5f962e124ac5eec40729c016e2537e1

c9f3d08f46ac09bcd6b61f590c75b28c

ff68b55fcce8c78971d964e6d00f0fe2

341ac97fcb0d3fded8f72dcc35ba0b49

adf20dd3185c321d165381f4b256c2b7

284cfde9b9e915fd40a8392da9cba160

3ce085ecf2e98a6cc3ae9af4ad6ca988

c2b9b0a63e571220519cd742811dc4c4

factory Showcase

  • Shandong Green Energy Innovation Technology Co., Ltd.
  • Shandong Green Energy Innovation Technology Co., Ltd.
  • Shandong Green Energy Innovation Technology Co., Ltd.
  • Shandong Green Energy Innovation Technology Co., Ltd.
  • Shandong Green Energy Innovation Technology Co., Ltd.
  • Shandong Green Energy Innovation Technology Co., Ltd.
  • Shandong Green Energy Innovation Technology Co., Ltd.
  • Shandong Green Energy Innovation Technology Co., Ltd.
  • Shandong Green Energy Innovation Technology Co., Ltd.
  • Shandong Green Energy Innovation Technology Co., Ltd.
  • Shandong Green Energy Innovation Technology Co., Ltd.
  • Shandong Green Energy Innovation Technology Co., Ltd.
  • Shandong Green Energy Innovation Technology Co., Ltd.
  • Shandong Green Energy Innovation Technology Co., Ltd.
  • Shandong Green Energy Innovation Technology Co., Ltd.
  • Shandong Green Energy Innovation Technology Co., Ltd.
  • Shandong Green Energy Innovation Technology Co., Ltd.
  • Shandong Green Energy Innovation Technology Co., Ltd.
  • Shandong Green Energy Innovation Technology Co., Ltd.
  • Shandong Green Energy Innovation Technology Co., Ltd.
  • Shandong Green Energy Innovation Technology Co., Ltd.
  • Shandong Green Energy Innovation Technology Co., Ltd.
  • Shandong Green Energy Innovation Technology Co., Ltd.
  • Shandong Green Energy Innovation Technology Co., Ltd.
  • Shandong Green Energy Innovation Technology Co., Ltd.
  • Shandong Green Energy Innovation Technology Co., Ltd.
  • Shandong Green Energy Innovation Technology Co., Ltd.
  • Shandong Green Energy Innovation Technology Co., Ltd.
  • Shandong Green Energy Innovation Technology Co., Ltd.

Certificate Display

  • 气瓶制造许可证2027
  • 鲁西新能源2025年QES三标证书(-2
  • 出口中东俄罗斯GOST认证证书也叫EAC证书
  • 出口欧洲SHI1982440-DAD-for-(GSJ10-2320-CNG-25)--SDAC1992492-Esigned-1
  • SZ23001-ISO氢气气瓶证书
  • SZ23001-2210L-559TPED氢气气瓶认证证书
  • Approval-CA2016050014美国DOT-1
  • 压力容器制造许可证2027

FAQ

Q:

What is the inspection cycle for gas cylinders?

A:
According to the national "Technical Regulations for Gas Cylinder Safety," LNG cylinders for vehicles must be inspected every 3 years, and industrial gas cylinders every 5 years. Our company provides one-stop testing services and can assist with obtaining test reports and compliance registration.
Q:

What are the differences between LNG cylinders and CNG cylinders?

A:
LNG is cryogenic liquefied natural gas with higher energy density and a range of over 600 kilometers, making it suitable for long-haul heavy trucks; CNG is compressed gaseous natural gas with more widespread refueling stations, making it suitable for short-distance delivery vehicles.
Q:

What certifications are required for exporting gas cylinders?

A:
Exporting to the EU requires CE certification, exporting to North America requires DOT certification, and exporting to Southeast Asia requires PS certification. Our company can assist with the entire certification process to ensure that products meet the market access requirements of the target market.
