TSG 21-2016 "Safety Technical Supervision Regulation for Stationary Pressure Vessels" JB 4732-1995 "Steel Pressure Vessels – Design by Analysis" Q/1500LXZ014-2020 "Stationary Gas Storage Cylinders" Q/1500LXZ015-2020 "Stationary Gas Storage Cylinder Groups"
Product Series
φ559, φ715
Product Specifications

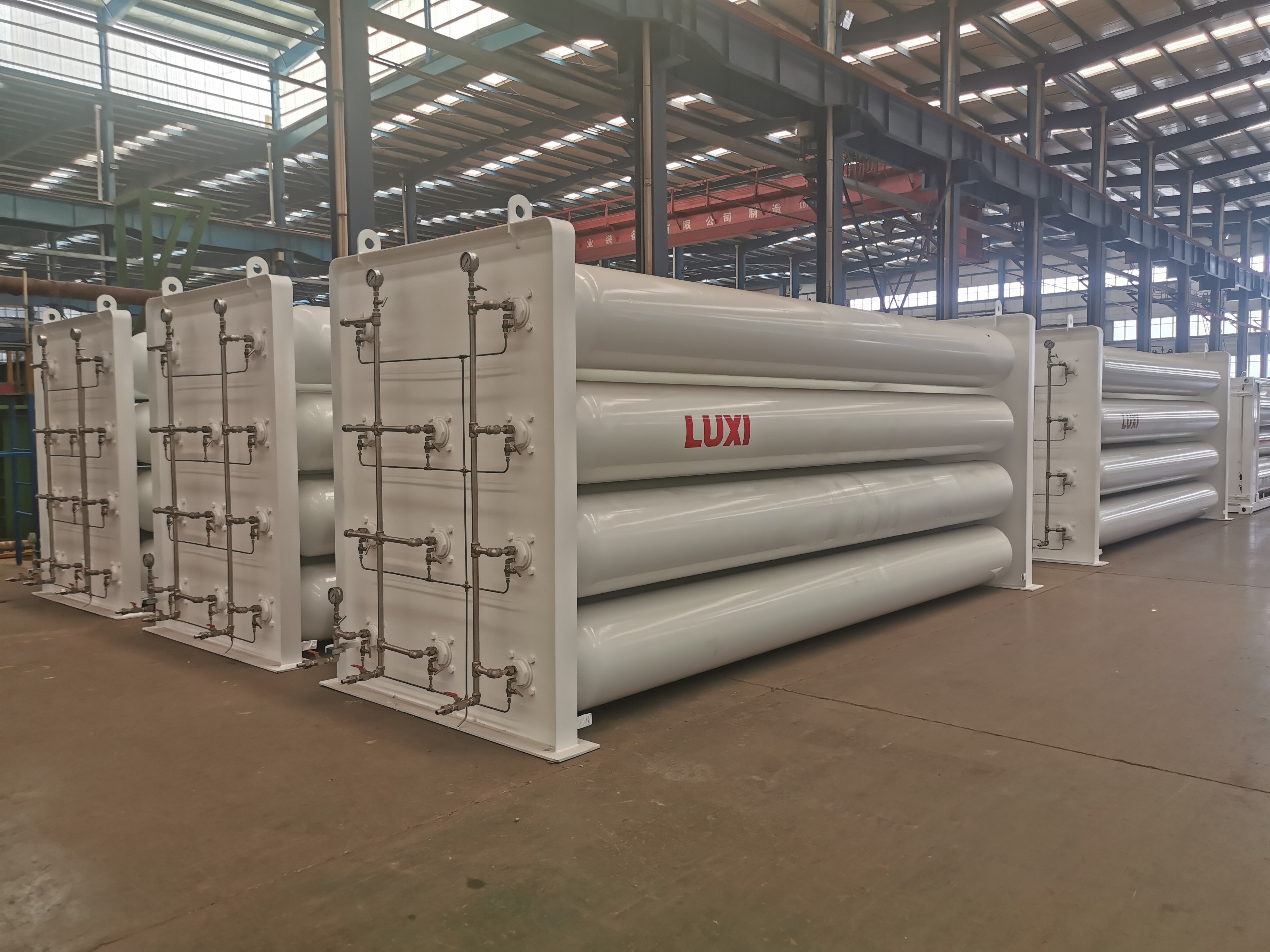

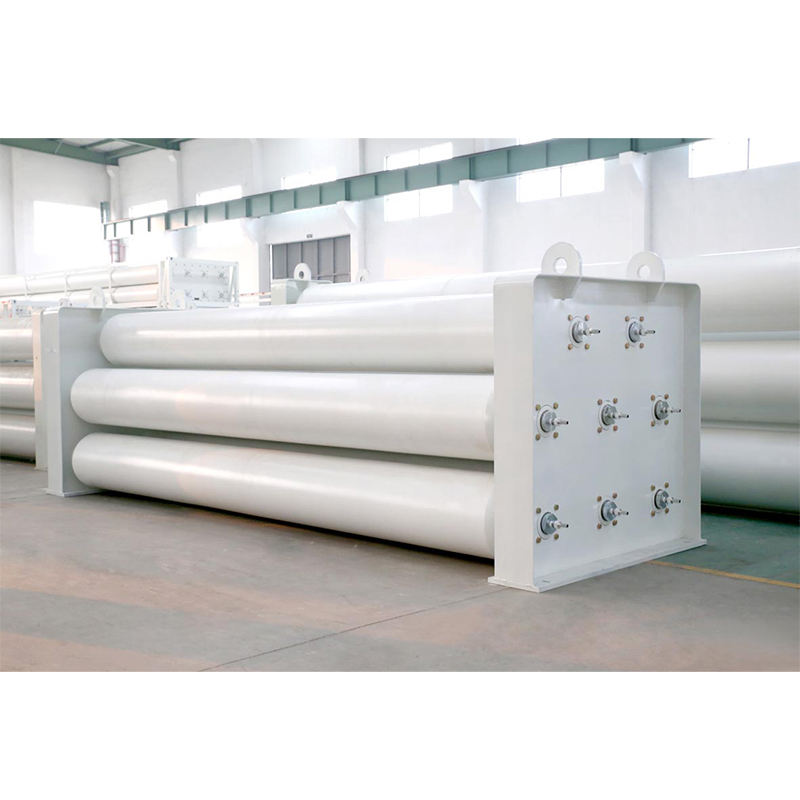

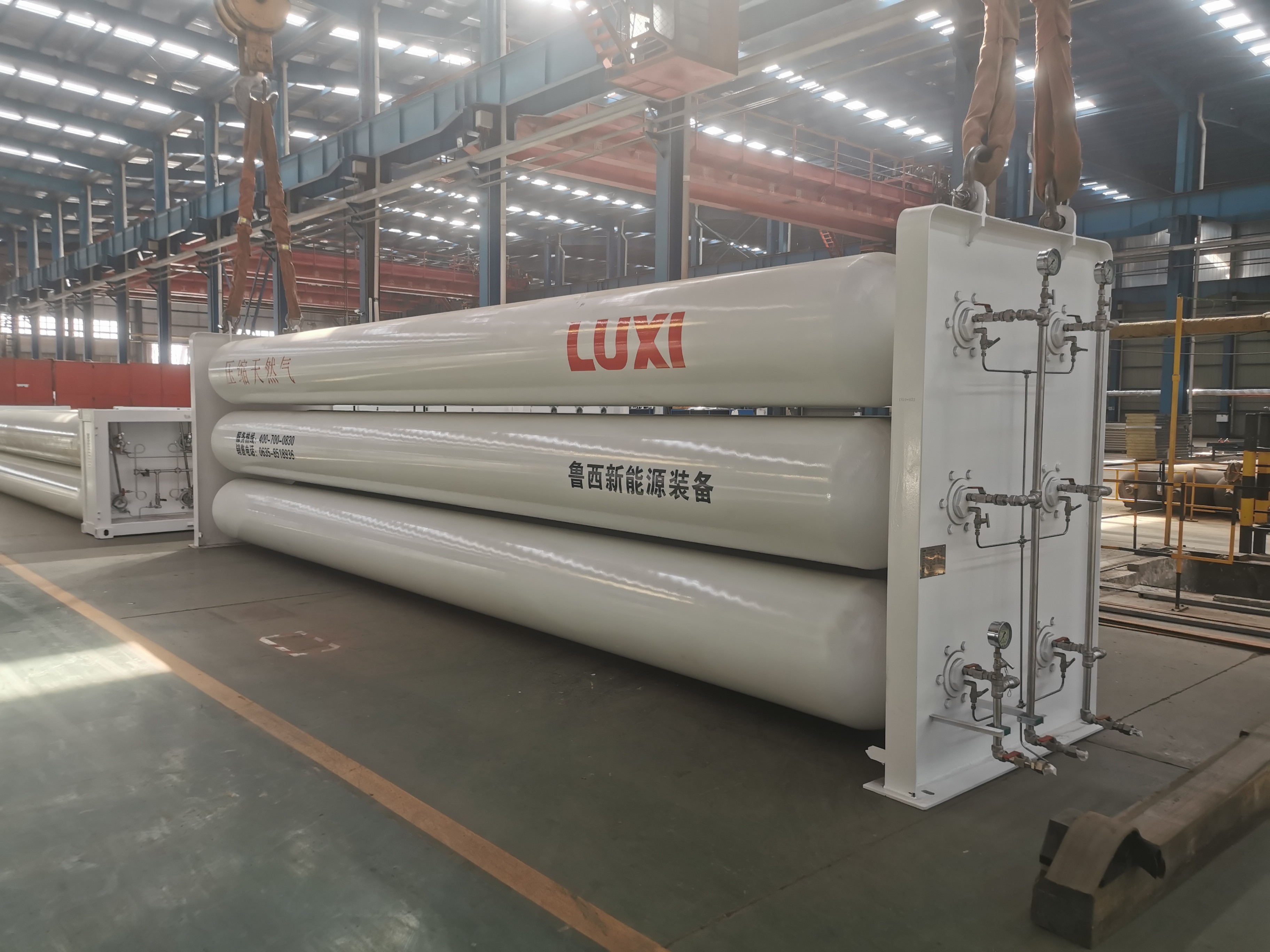

Stationary gas storage cylinder groups with 2, 3, 4, 6, and 8 tubes.
Charging Mediums
Various high-pressure compressed gases such as CNG, He, Ar, N22.
Gas cylinder technical parameters
Water capacity(L)
2450
2320
1066
2348
2210
1050
2300
Working pressure (Mpa)
25
25
25
25
25
25
20
Hydraulic pressure test (Mpa)
37.5
37.5
37.5
37.5
37.5
37.5
30
Weight(Kg)
2570
2434
1266
2928
2769
1366
2308
size(mm)
Φ559*14.8*11580
Φ559*14.8*10975
Φ559*14.8*5400
Φ559*17.4*11580
Φ559*17.4*10975
Φ559*17.4*5400
Φ559*13.7*10975
Working temp(℃)
-115
-115
-115
-115
-115
-115
-115
Material
4142
4142
4142
4130X
4130X
4130X
4130X
Filling medium
CNG
CNG
CNG
CNG/H2
CNG/H2
CNG/H2
CNG/H2

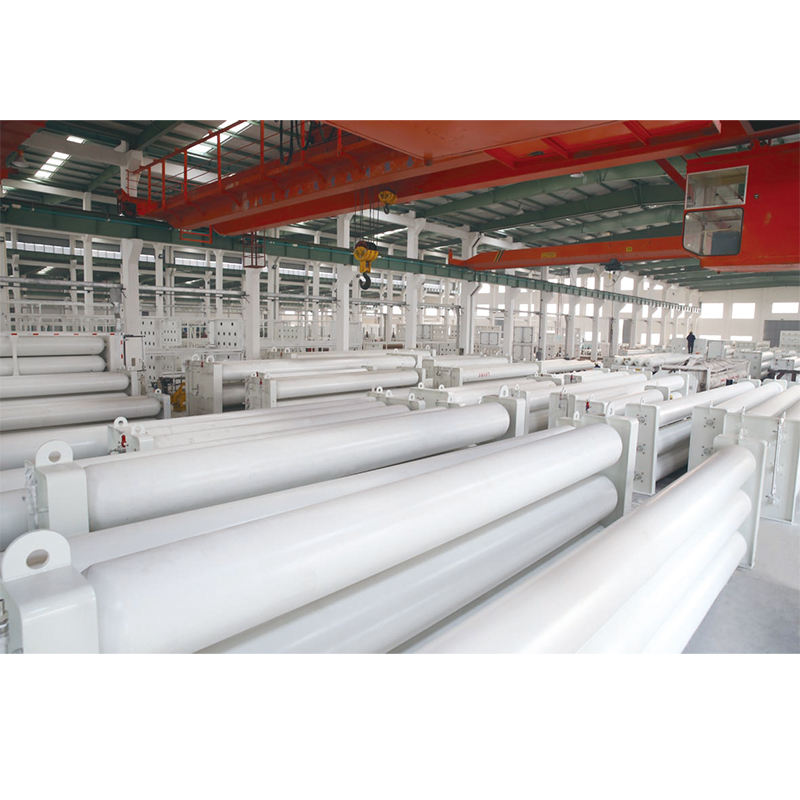

factory Showcase
Certificate Display
FAQ
Q:
What is the inspection cycle for gas cylinders?
A:
According to the national "Technical Regulations for Gas Cylinder Safety," LNG cylinders for vehicles must be inspected every 3 years, and industrial gas cylinders every 5 years. Our company provides one-stop testing services and can assist with obtaining test reports and compliance registration.
Q:
What are the differences between LNG cylinders and CNG cylinders?
A:
LNG is cryogenic liquefied natural gas with higher energy density and a range of over 600 kilometers, making it suitable for long-haul heavy trucks; CNG is compressed gaseous natural gas with more widespread refueling stations, making it suitable for short-distance delivery vehicles.
Q:
What certifications are required for exporting gas cylinders?
A:
Exporting to the EU requires CE certification, exporting to North America requires DOT certification, and exporting to Southeast Asia requires PS certification. Our company can assist with the entire certification process to ensure that products meet the market access requirements of the target market.
